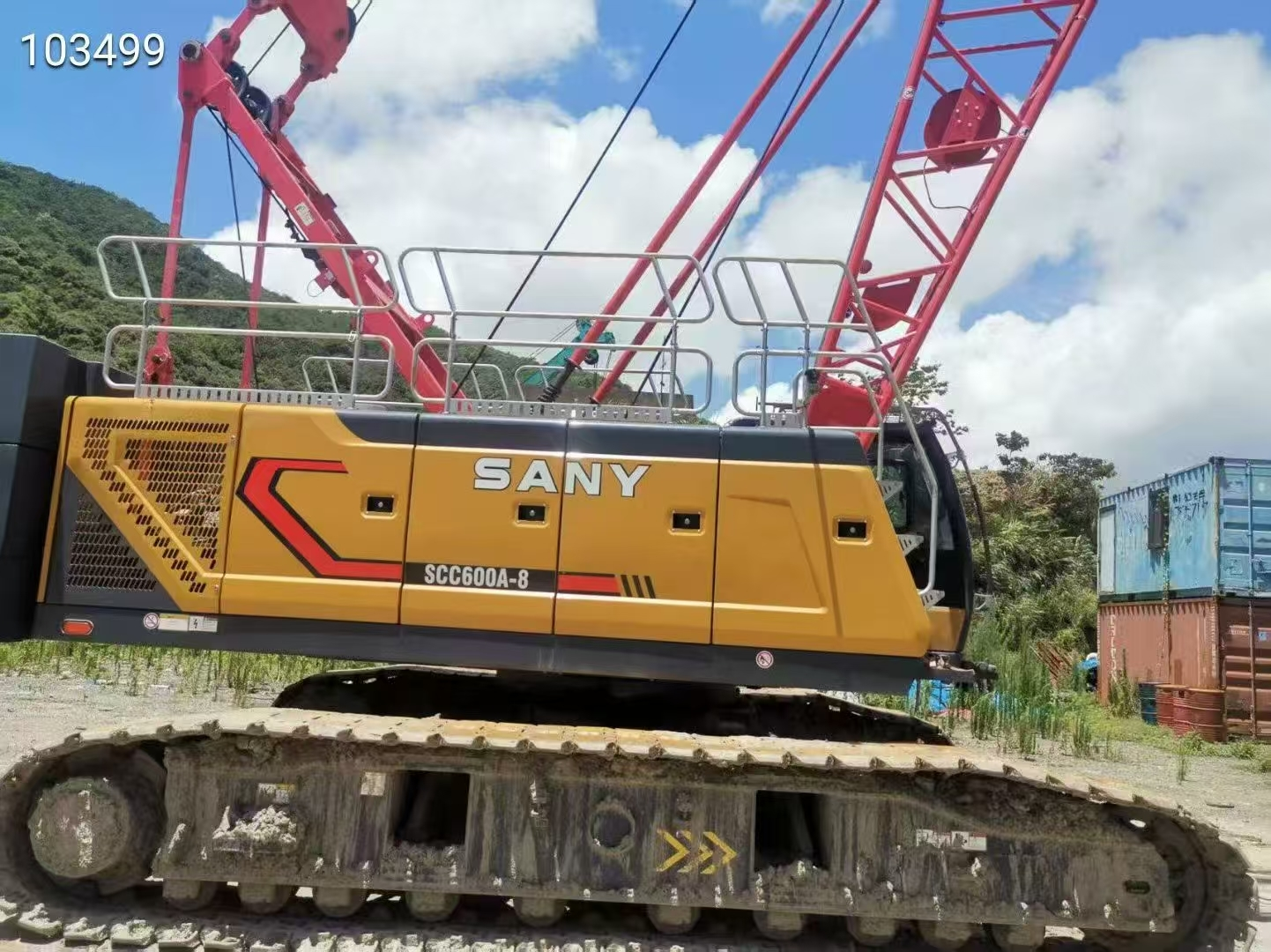

2023 SANY SCC600A-8 60-Ton Hydraulic Crawler Crane

Application

The sany 60t  has the advantages of strong power, strong stability, efficient construction capabilities, easy operation, convenient maintenance, high-quality manufacturing technology and reliability. It is an excellent tool widely used in earthwork projects.

Features

1. Strong Lifting Performance
Maximum rated lifting capacity 60 tons, max lifting moment 222 t·m. Main boom spans 13–52m, with optional 6.1–15.25m fixed jib (max combined height 58.25m). Equipped with 22mm high-strength wire rope and rated single-line force 7.5 tons for stable heavy-load lifting.

2. Precise 360° Slewing Control
Full-circle continuous rotation (max 1.9 r/min) with smooth inching and micro-positioning. Optimized external-engaged slewing bearing ensures stable and accurate load placement.

3. High-Speed & Stable Hoisting
Main winch max single-line speed 130 m/min. Fold-line groove drums ensure orderly rope arrangement. Optional free-fall function and reliable braking enhance operating efficiency.

4. Powerful Travel & Terrain Stability
Hydraulic crawlers (max speed 1.3 km/h) with 760mm wide tracks. Low ground pressure 0.056 MPa and 40% gradeability for stable performance on soft/rough terrain. Total counterweight 16.5 tons ensures strong stability.

5. Intelligent Safety & Monitoring System
Advanced load moment indicator (LMI) with real-time monitoring. Features overload protection, anti-tip, over-wind protection, fault self-diagnosis, and camera assist for safe operation.

6. Efficient Transport & Self-Assembly
Modular design allows 3m narrow transport with lower boom attached. Simplified 3-piece counterweight (vs 4-piece) improves disassembly efficiency by 25%. Self-assembly system enables quick on-site setup without auxiliary cranes.
