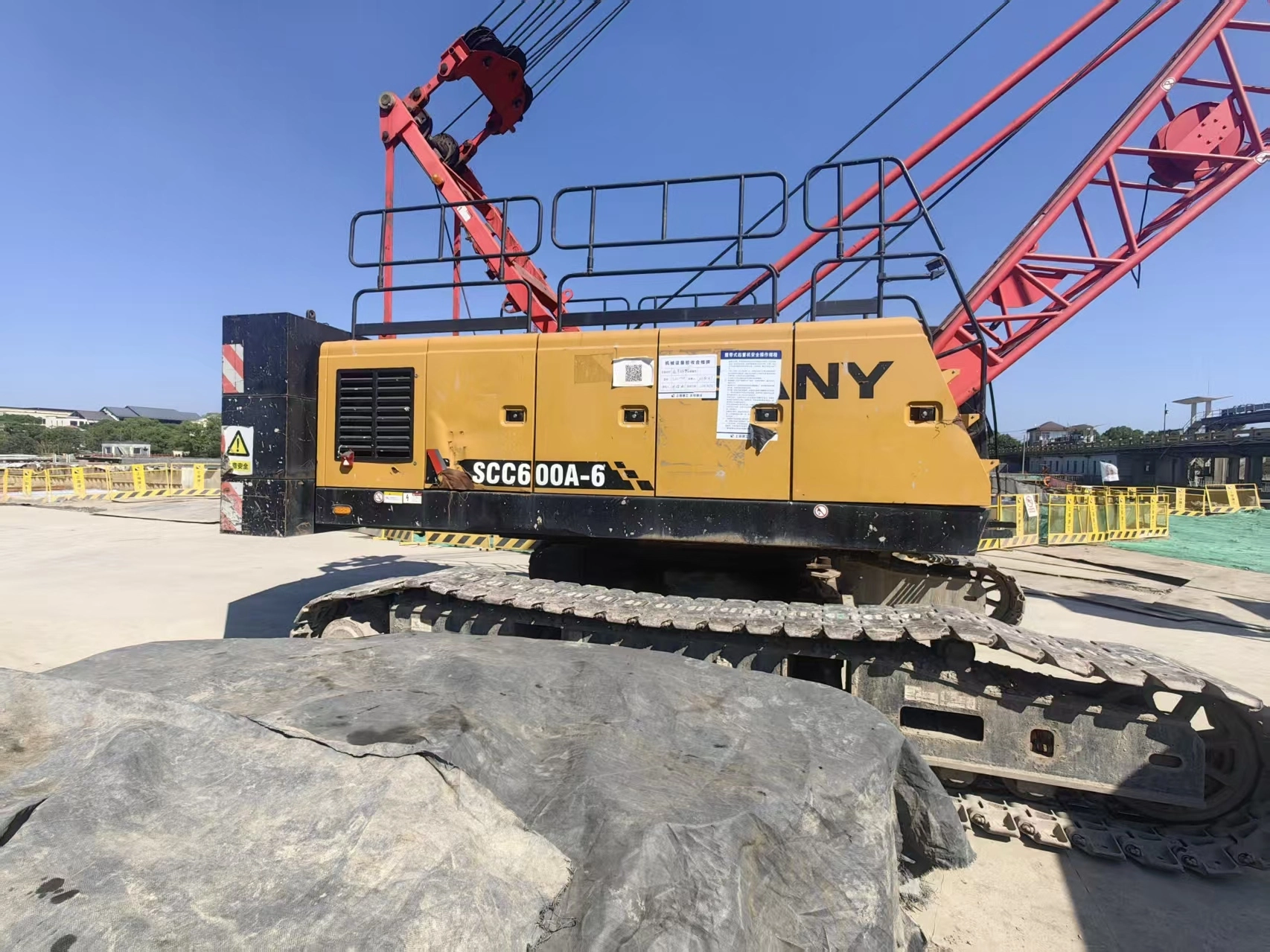

2021 SANY SCC600A-6 60-Ton Hydraulic Crawler Crane

Application

The SANY 60T has the advantages of strong power, strong stability, efficient construction capabilities, easy operation, convenient maintenance, high-quality manufacturing technology and reliability. It is an excellent tool widely used in earthwork projects.

Features

1. Strong Lifting Performance
Maximum rated lifting capacity 60 tons, max lifting moment 222 t·m. Main boom spans 13–52m, with optional 6.1–15.25m fixed jib (max combined height 58.25m). Ideal for medium-to-heavy hoisting tasks.

2. Precise 360° Slewing Control
Full-circle continuous rotation (max 1.9 rpm) with ultra-smooth inching and micro-positioning. Reliable swing lock and buffer system ensure accurate load placement for precise installation work.

3. High-Speed & Stable Hoisting
Main winch single-line speed up to 135 m/min, rated single-line pull 7 tons. High-strength wire rope and free-fall function enhance efficiency. Fast response (<0.5s) and precise "inching" control for delicate operations.

4. Powerful Travel & Terrain Stability
Hydraulically driven crawlers (max speed 1.3 km/h) with 760mm wide tracks. 40% gradeability and low ground pressure (0.062 MPa) for stable performance on soft/rough ground. Total counterweight 16 tons for maximum stability.

5. Intelligent Safety & Monitoring System
Advanced SYIC-II control with real-time Load Moment Indicator (LMI). Features overload protection, anti-tip, over-wind protection, fault self-diagnosis, and GPS monitoring. Equipped with cameras for safe operation.

6. Easy Transport & Self-Assembly
Modular design for quick disassembly. Transport dimensions 12.1×3.0×3.35m, max single-piece weight 30.5 tons. Self-assembly system allows quick on-site setup without auxiliary cranes.
