Product details of the truck mounted crane with hydraulic boom
Product Description
truck mounted crane with hydraulic boom is exquisitely designed from a group of innovative designers. The product is quality tested by our quality auditors and approved to be of high quality. By years of development, the product has successfully gained trust from clients and tends to be more applied in the global market.
Max lifting capacity |
50t |
Max. Lifting Height |
40m |
Hydraulic Cylinder Brand |
Tadano original |
Hydraulic Pump Brand |
Tadano original |
Hydraulic Valve Brand |
Tadano original |
Application

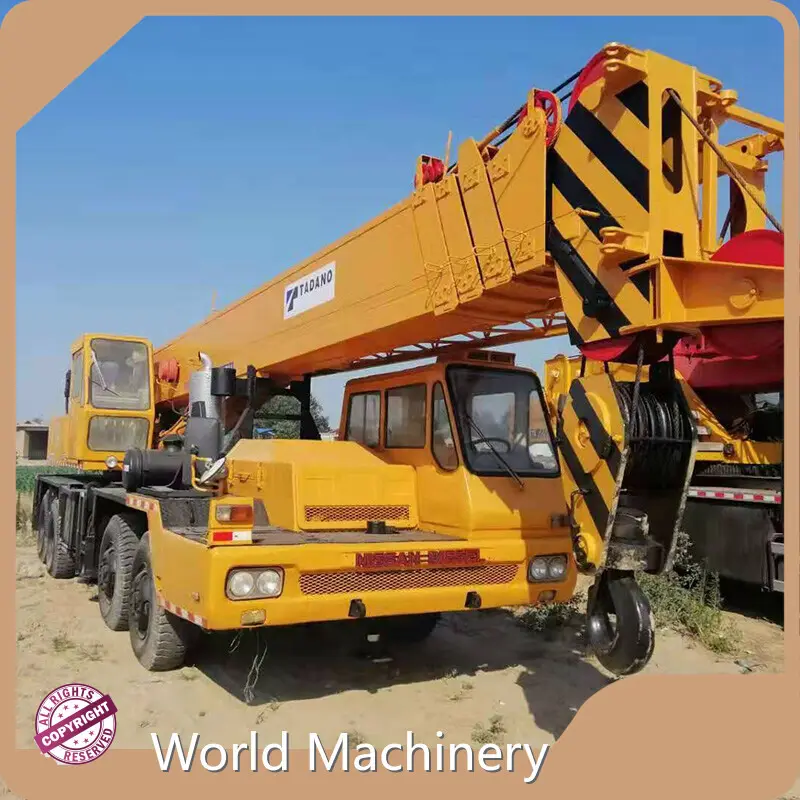

The TG-500E truck-mounted crane incorporates advanced technology and Tadano's extensive on-the-job know-how to outperform any crane in its class. Both strong and flexible, the TG-500E is tough enough for big jobs, while versatile enough to handle jobs in constricted and irregularly shaped work areas.This power crane features a stronger hexagonal boom, designed for maximum flexural and torsional rigidity and a wider elevation range for close- in lifting. The unit also incorporates a unique feedback system, which provides the operator with information on lifting capacity, load radius, and other aperational data for markedly improved operating efficiency.
Features
● Stronger Hexagonal Boom
The advanced design of the TG-500E's hex-agonal boom incorporates greatly improvedflexural and torsional rigidity for increasedstrength. The five-section boom, which isoperated by a single lever, is equipped withthree telescope cylinders and has a range oflength from 10.65 to 40.0 meters.
● Extra Reach (extension jib)
A two stage jib stored under the base boom section can be extended by9.0 or 14.6 meters and, when erected, can be oflset either 5%, 25%, or 45from the main boom center line. This innovative feature makes lifting atclose quarters safe and efficient.
● Single Top
The boom head can be fitted with a singletop for light load, highspeed lifting, whenextra lift height is not required.
● Underslung Jib
The underslung jib can be quickly and easily extended and stowed within the outriggerwidth.
Easy Operation
● Crane Cantrol Levers
All crane controls conform to the ISO standards and employ a special spring center system that automatically rcturns lever positionsto neutral when relesed, thus preventing accidental lever changes during operation. Botheasy-to-use foot pedals for telescoping andauxiliary winching improve their opcrationswhen executed simultaneously with paralleltype operation valves, The new system improves overall control and makes it extiemnelycasy to operate crane.
● Easy SingleLever Operation
Telescoping is done smoothly and easily byoperating a single lever, and mode change!can be done without retracting the boomWhen extended, the second and third sections are telescoped first. By pressing thefourth and last section switch and mavingthe telescoping lever forward the boom isfully extended. When retracted, only the le-ver nceds to be manipulated. while the sec.tions are retracted in reverse order.
Safety & Reliability
● Automatic Moment Limiter [AML]
Precise and safe operation is ensured by an automatie motion cuttingdevice (AML.LC) which prevents overloading Information on eightseparate functions is continuously displaved on the monitor: total mo.ment, boom angle, actual boomn length, actual load radius, extension jibangle, actual hook load, maximum potential load and boom positionindiatot.
T'he easy-to.view AMl.-L C pane! displays all the required functions forcranc opcrations. Display changes only while Display Alternation Key y is being prossed.
● Four work range limiting function
● Woeking area limiting function (alanm dctivates when the boom swings toward theowerload area.)
● Displays when Abnormal (Error Code)Buer sounds (Error Code is displayed onthe Moment displav, when a problem oc.curs with the AML.) Abnormalities andtheir causes can be easily traced by the Er.ror Code function.
