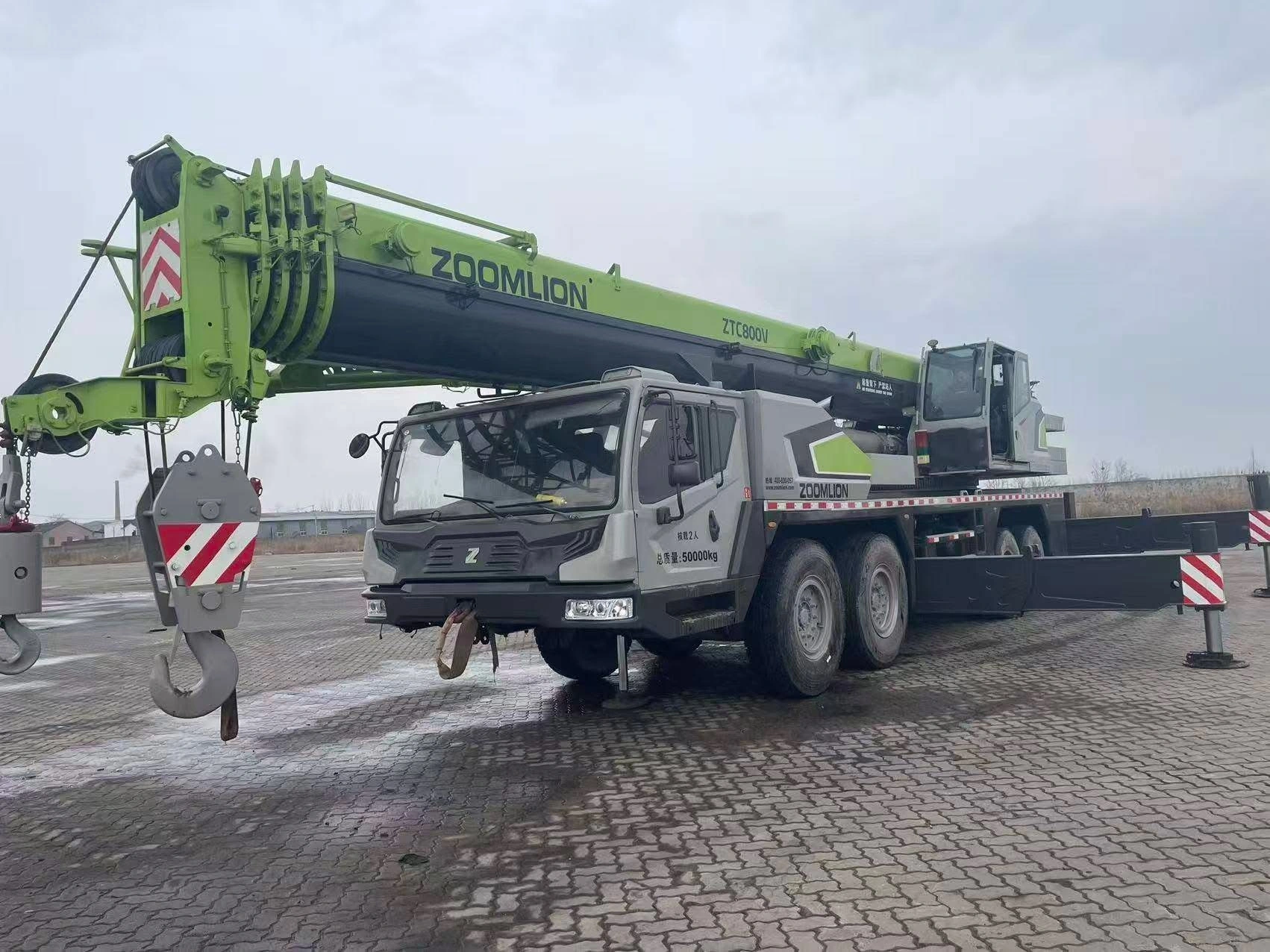

80 Ton Zoomlion Crane for Construction & Bridge Projects

Application

TheZOOMLION 80T has the advantages of strong power, strong stability, efficient construction capabilities, easy operation, convenient maintenance, high-quality manufacturing technology and reliability. It is an excellent tool widely used in earthwork projects.

Features

1. Strong Lifting Performance
80-ton rated capacity, 50–65.6m high-strength U-shaped boom, max lifting height 67–90.5m (main + jib), 3528kN·m max lifting moment, delivering industry-leading long-reach and heavy-load lifting.

2. Powerful & Economical Powertrain
Equipped with Weichai WP12 engine (276kW, 1800N·m), 10-speed gearbox, max speed 90km/h, 40% gradeability, and intelligent energy-saving system for low fuel consumption.

3. Precise Electro-Hydraulic Control
Load-sensitive proportional hydraulic system, smooth combined operations, main winch speed up to 140m/min, ultra-low stable rotation (0.1°/s) for precise heavy-load positioning.

4. Excellent Stability & Structure
Large-span low-set H-type outriggers (6.38×8.0m), 21.5–28t optimized counterweight, rigid 4-axle chassis, ensuring 360° stable operation under full load.

5. Flexible Mobility & Transport
Can travel with 11–18t counterweight at 30–50km/h, compact transport dimensions (15×3×3.92m), easy site transfer and fast assembly/disassembly.

6. Comprehensive Safety & Comfort
High-precision LMI, real-time monitoring, dual-slewing drive, ergonomic cab with AC, adjustable seats, and multi-level safety protections for safe, comfortable operation.
