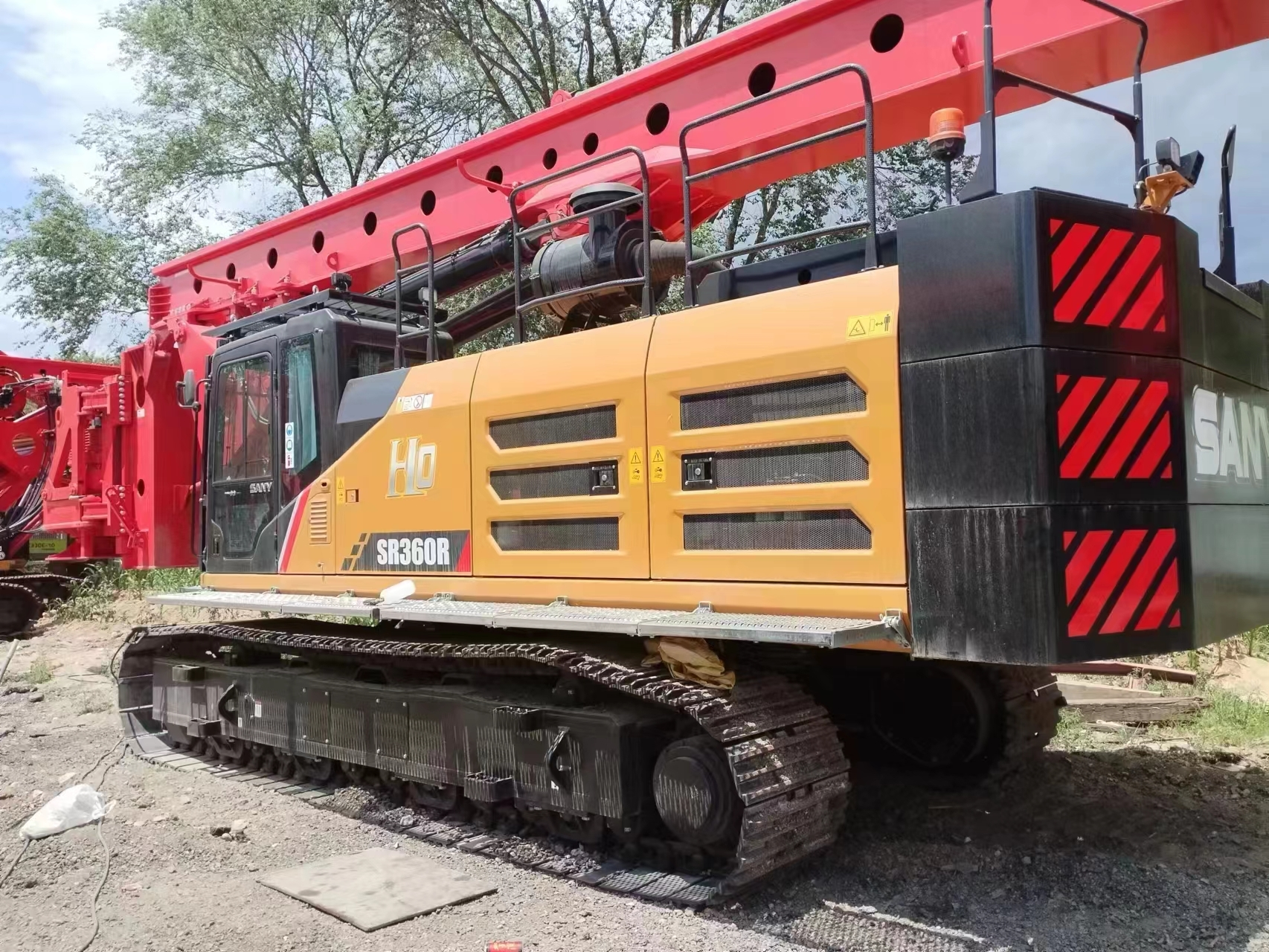

Used SR360r Rotary Drilling rig for construction works

Application

  Sany Heavy Industry SR360R-H10 rotor digging rotor is equipped with heavy load reducer, which is resistant to impact and has stable torque; it is easy to get in the face of hard rocks above 60MPa. Structural parts adopt a rock -in -resistance impact technology, anti -fatigue, impact resistance, 20,000 hours without cracking

Features

1.Large construction capacity: satisfy the pile diameter of 2.5 meters and 100 meters depth.

2.Strong ability to enter the rock: 120 tons of the whole machine, 290kn with pressure, stable in the rock; equipped with 2 60,000 Nm re -loading reducer, the reserve coefficient is large and impact -resistant.

3.High reliability: The design life of the structural parts is 10,000 hours; the φ530 V -generation drill rod warranty period is 3,000 hours, which are higher than the industry. The main valve, main pump, walking, rotation, and other retrieval machines use imported international brands, which are reliable in quality; the return and main rolls are used in dual motor reducers.

4.Energy -saving and efficient: The fuel consumption of the Kuibu engine is 10%to 15%lower than the Cummins engine with competitive products; the output torque (1592N · m is higher than 1355N · m), and the power output is stable and strong.

5.Flexible and convenient: parallel across border changing agencies, easy to disassemble and transport.

6.Convenient maintenance: The lubrication system in the standard set, integrated host display monitoring, and realizing the automatic fixed -point fixed -point lubrication maintenance of the whole machine, provincial labor reduction.
